parameters
| NO. | Description | Parameter | |

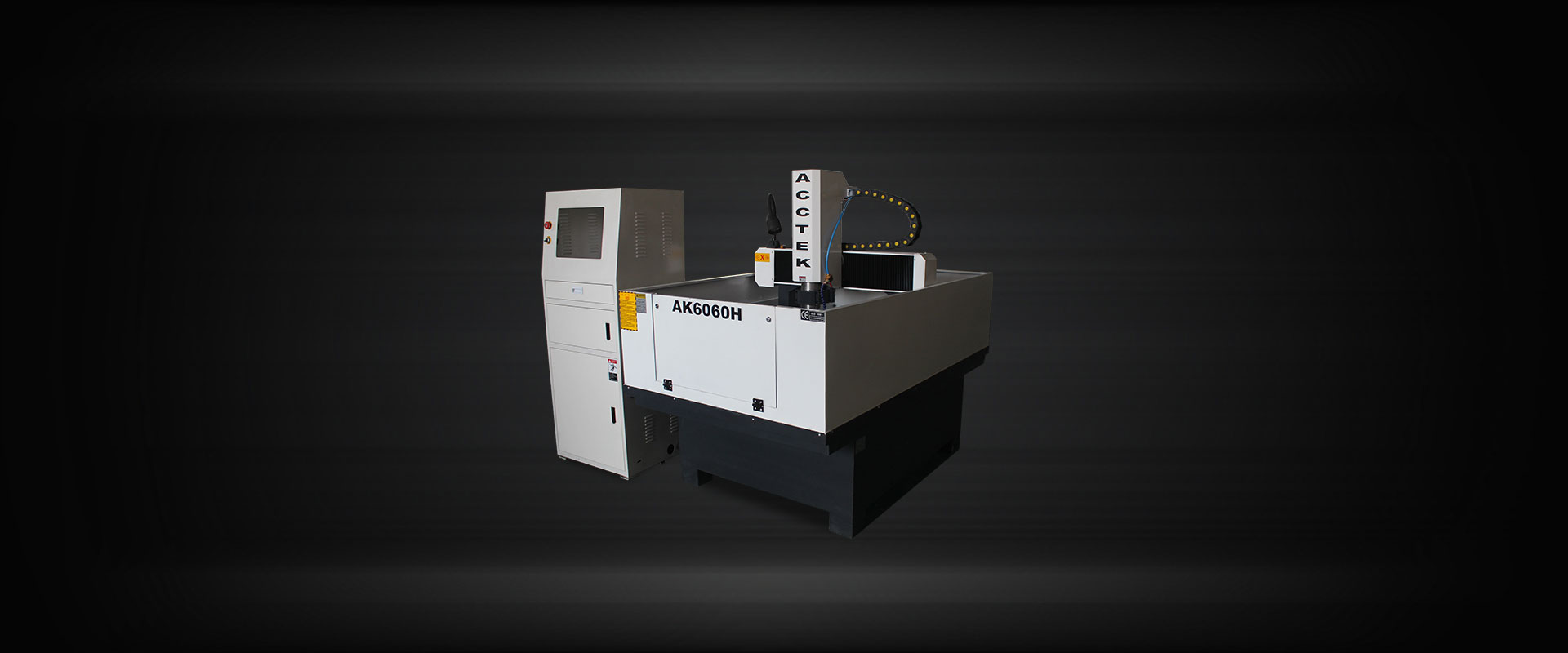

| 1 | Model | AK4040H | AK6060H |
| 2 | X,Y,Z Working Area | 400*400*200mm | 600*600*200mm |
| 3 | Table Size | 400*400mm | 600*600mm |
| 4 | Traveling Positioning Accuracy | ±0.03mm | |
| 5 | Repositioning Accuracy | ±0.03mm | |
| 6 | Table Surface | T-slot Extrusions | |
| 7 | Table Frame | Whole Cast Steel | |
| 8 | Transmission | TBI Ball Screw from Taiwan | |
| 9 | Guide rails | Hiwin Rail Linear guide rails | |
| 10 | Max. Power Consumption(Without spindle) | 0.8Kw | |
| 11 | Max. Rapid Travel Rate | 12000mm/min | |
| 12 | Max. Working Speed | 6000mm/min | |
| 13 | Spindle Power Motor | 3.2 Kw water-cooled spindle | |
| 14 | Spindle Speed | 0-24000RPM | |
| 15 | Drive Motors | Stepper motors | |
| 16 | Working Voltage | 220/380V/50/60Hz | |
| 17 | Command Language | G code | |
| 18 | Operating System | Mach3 controller | |
| 19 | Inverter | Shanghai Fuling inverter | |
| 20 | Bearing holders | Original from Taiwan | |
| 21 | X,Y Resolution | <0.01mm | |
| 22 | Software Compatibility | Type3/ Artcam software | |
| 23 | Running Environment |
Temperature: 0℃～45℃ Relative humidity: 30%～75% |
|
| 24 | Packing Size | 1800*1500*1800mm | 2000*1660*1800mm |
| 25 | Net Weight | 430KG | 550KG |
| 26 | Gross Weight | 550KG |
650KG |
Basic Features
3.2KW water cooling spindle
Smooth body, not easy to rust;powerful and longer lifetime.Independent research and development, rational design.
Mach3 controller
Support Winxp win7 win10. doesn’t need driver installed. Aluminum housing, shielding interference, stable and reliable
Taiwan TBI ball screw transmission
Convert rotary motion to linear motion,drive the machine move. High precision, high strength and long lifetime
Heavy duty Cast iron structure
High strength and precision, strong stability, no deformed for many years, long lifetime.
Sliding dust-proof metal Plate
Made of stainless steel, no rust, proof water and dust very well.
Semi enclosed structure
Good protection, not only can see the work clearly, but also play a role in protecting safety.
Options
Rotary axis
Realize local rotary machining, reduce finishing allowance and complete tool path calculation at one time
Leadshine servo motor
Fast speed, more convenient, save processing time, high control accuracy
DSP controller
featuring delicate appearance,powerful functionality and flexible operation.
applications
1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
