Econmic Metal Engraving Machine

Model:

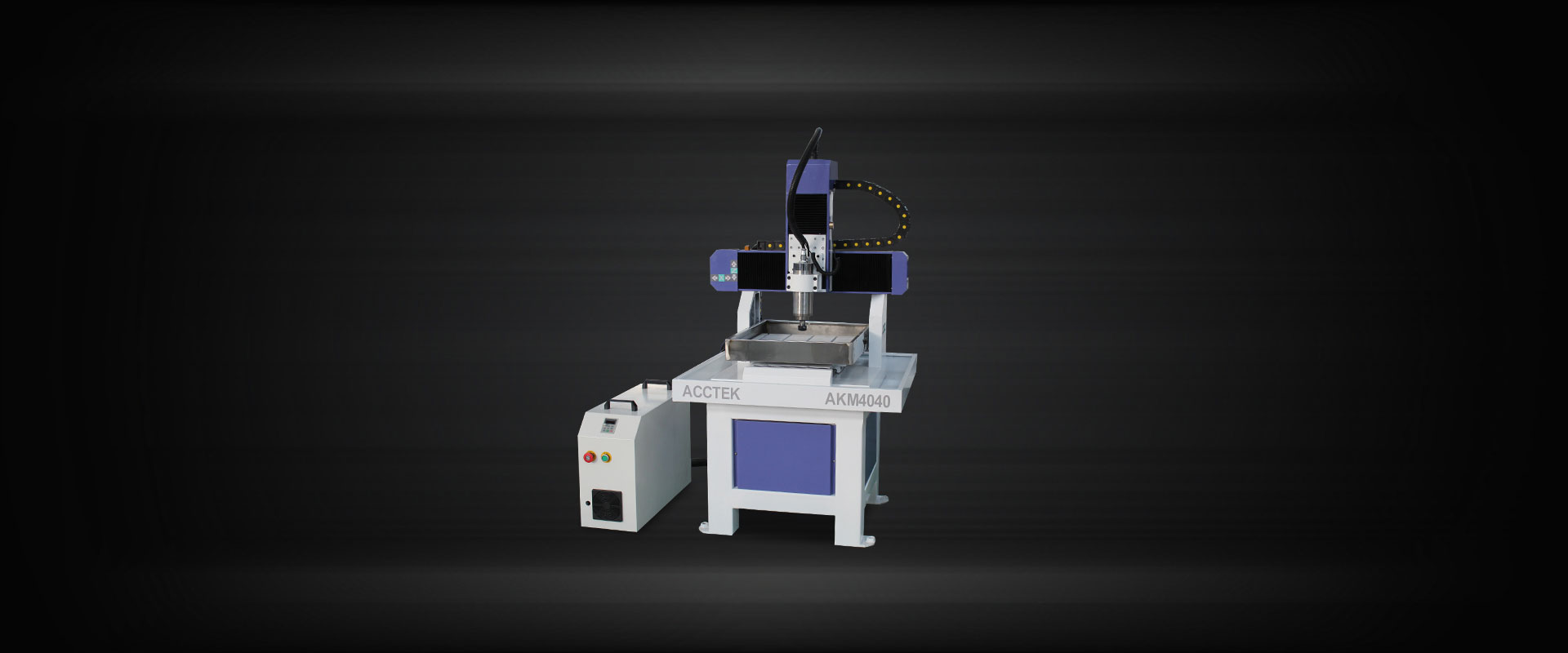

AKM4040 |

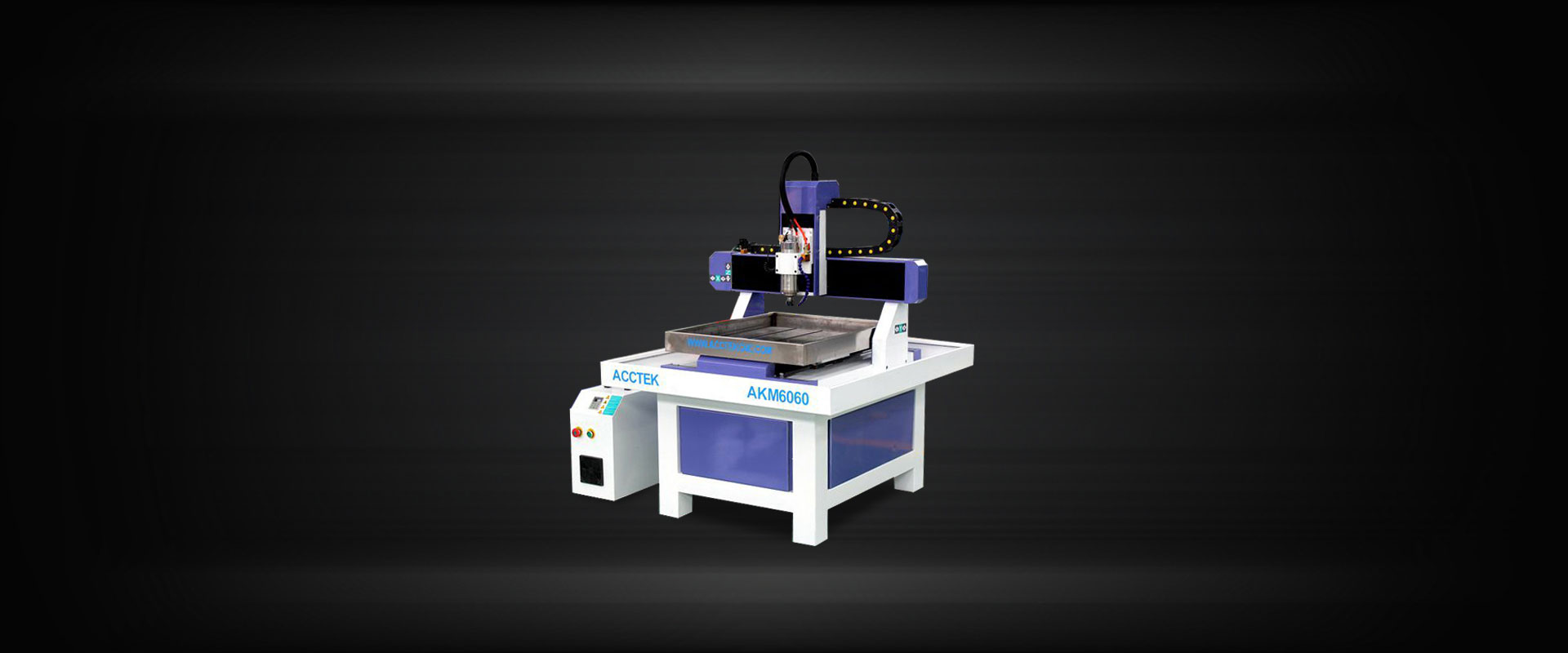

AKM6060 |

Brand:

ACCTEK

view:

Times

Rating:

Lead time:

15-17 working days

Customized features:

available

OEM:

available

Email whatsapp Skype

parameters

NO.	Description	Parameter
1	Model	AK4040	AK6060
2	X,Y,Z Working Area	400400150mm	600600150mm
3	Table Size	400*400mm	600*600mm
4	Traveling Positioning Accuracy	±0.03mm
5	Repositioning Accuracy	±0.03mm
6	Table Surface	T-slot Extrusions
7	Table Frame	Whole Cast Steel
8	Transmission	TBI Ball Screw from Taiwan
9	Guide rails	Hiwin Rail Linear guide rails
10	Max. Power Consumption(Without spindle)	0.8Kw
11	Max. Rapid Travel Rate	6000mm/min
12	Max. Working Speed	4000mm/min
13	Spindle Power Motor	2.2 Kw water-cooled spindle
14	Spindle Speed	0-24000RPM
15	Drive Motors	Stepper motors
16	Working Voltage	220/380V/50/60Hz
17	Command Language	G code
18	Operating System	Mach3 controller
19	Inverter	Shanghai Fuling inverter
20	Bearing holders	Original from Taiwan
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/ Artcam software
23	Running Environment	Temperature: 0℃～45℃ Relative humidity: 30%～75%
24	Packing Size	112010701720mm	146012501800mm
25	Net Weight	180KG	220KG
26	Gross Weight	240KG	300KG

Basic Features

2.2KW water cooling spindle

Smooth body, not easy to rust;powerful and longer lifetime.Independent research and development, rational design.

Mach3 controller

Support Winxp win7 win10. doesn’t need driver installed. Aluminum housing, shielding interference, stable and reliable

Taiwan TBI ball screw transmission

Convert rotary motion to linear motion,drive the machine move. High precision, high strength and long lifetime

Cast iron structure

High strength, strong stability, no deformed for many years, long lifetime.

Cast iron table

Basically not affected by temperature, corrosion resistance, good accuracy and stability

Water cooling nozzle

Cooling direction and water flow can be adjusted, better cooling effect.

Options

Rotary axis
Realize local rotary machining, reduce finishing allowance and complete tool path calculation at one time
Leadshine servo motor
Fast speed, more convenient, save processing time, high control accuracy
DSP controller
featuring delicate appearance,powerful functionality and flexible operation.

applications

1.The cnc moulding machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine's stability.

2.Well compatibility: cnc moulding machine is compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc

3.Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed.Adopting Taiwan's high-precision square linear guide, effectively imported the precision of carving.

4.Adopt high-speed water cooling motor with invariably power, big torque, strong cutting, high-frequency and long-life. 5.Available for continuous work for a long time.
