parameters
| NO | Description | Parameter | |

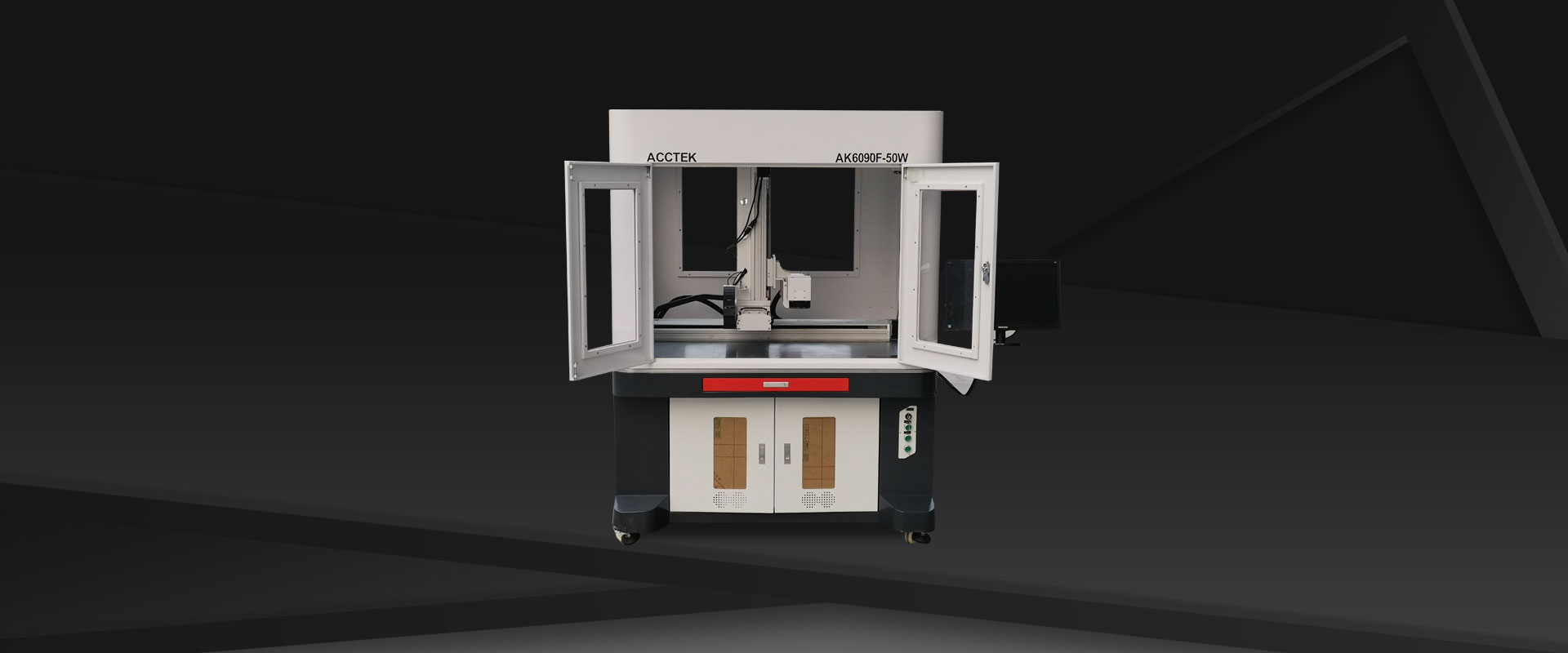

| 1 | Model | AK30F | AK50F |
| 2 | Laser Power | 30W | 50W |
| 3 | Making Range | 600*900mm | |
| 4 | Laser Wavelength | 1064nm | |
| 5 | Fiber laser generator | Raycus | |
| 6 | Minimum Line Width | 10 micron | |
| 7 | Minimum Character | 0.15mm | |
| 8 | Marking Depth | 0 ~0.5mm | |
| 9 | Engraving Line Speed | ≤7000mm/s | |
| 10 | Repeatability Accuracy | ±0.001mm | |
| 11 | Beam Quality | M2:1.2~1.8 | |
| 12 | Marking Format |
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically
Marking the Date, Batchnumber, Serialnumber, Frequency,etc.
|
|
| 13 | Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | |
| 14 | Working Voltage | 110v/220V±10%/50Hz/4 60hz | |
| 15 | Unit Power | ≤0.5KW | |
| 16 | Use of the Environment | Clean and Dust Free or Dust less | |
| 17 | Working Condition:Humidity | 5%-75%,Free of Condensed Water | |
| 18 | Laser Module Life | >100000 hours | |
| 19 | Package | Plywood box | |
| 20 | Optional power | 100w(Racys/IPG brand) | |
| 21 | N/G weight | 300/350kg | |
Basic Features
Raycus 50w fiber laser source
Long service life and more stable operation
Field lens
Good material, good focus, high power, long service life
High-speed galvanometer
Compact and convenient, easy to operate, durable, energy-saving and efficient, high-definition scanning, fast
Original LMCV4 EZCAD controller
The system is stable, easy to operate and install
Screw linear module slide table
Repeatability(mm) 士0.01mm, MaximumSpeed(mm/s) 100-1000mm/s
Options
rotary device for marker
Rotary device for cylinder object , like ring , pen
Field Galvo lens
2D aluminum adjust table
