parameters
| 1 | Model | AKJ1530FB |
| 2 | Laser power | 1000W/1500W/2000W/3000W/4000W/8000W/12000W(Optional) |
| 3 | Dimensions | 4600*2450*1700mm |
| 4 | Working area | 3000mm x 1500mm |
| 5 | Repeat positioning accuracy | ±0.02mm |
| 6 | Maximum speed | 120m/min |
| 7 | Max acceleration | 1.0G |
| 8 | Max Cutting Speed | 80m/min |
| 9 | Motor &driver | Japanese YASKAWA brand |
| 10 | Laser head | Raytools |
| 11 | voltage | 380V 50Hz/60Hz/60A |
| 12 | Weight | 5000Kg |
Basic Features

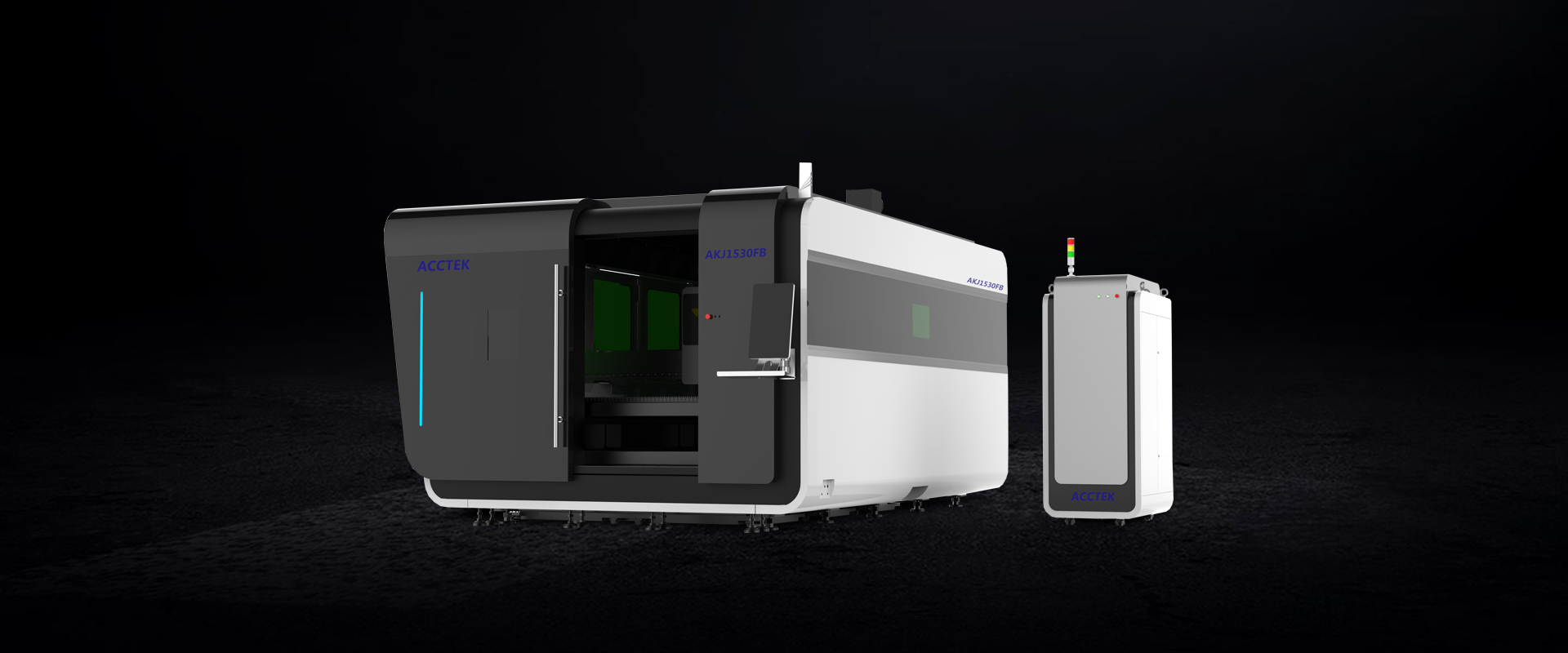

Fully enclosed design
With a fully enclosed design. Safety and No Pollution. It is recommended for power 3000w and above.
Heavy duty Frame
The strongest frame in China CNC machine industry. Thickness of rectangular pipe wall is 10mm, itself weights 4500 kg, increases the stability of the guide rail so as to effectively avoid the deformation of the bed. Lifetime is up to 25 years.
Aviation Aluminum Gantry
Light weight, high strength, no deformation. Molded and framed by integral steel mold and die-casting technology, light crossbeam enables equipment a high operation speed, improving processing efficiency and processing quality.
Raycus laser generator
Raycus has an efficient and professional R&D and production team. The single module CW fiber laser series not only can meet diversified demands of customers to the greatest extent, but also provide personal customization service. Now laser output connector is QBH, with multiple control modes.
Raytool cutting head
The Raytools Laser Cutting Heads are released based on Switzerland RAYTOOLS, which are suitable for medium and high power fiber lasers in industrial applications
HIWIN Guide rails
Rail works with slider, drive the machine move, with good bearing capacity.
Japanese Yaskawa Servo Motor
Y axis 1.8KW, X axis 850W. Faster speed with signal feedback. Low heat radiation. Run smoothly at ultra-low speed. Reduce the vibration, avoid oscillation. Efficient torque enhancement .
Options
More powerful Raycus laser
We supply laser power from 0.5KW to 12KW to meet different customers'cutting demands.
Auto rotary axis
For cutting round pipes and square tubes. It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal a
IPG Laser Generator
IPG Laser Generator is available from 1.0KW to 12KW. It has better performance in cutting aluminum,brass and cooper.
Exchange table
Safe and stable, improve work efficiency
applications
