parameters
| No | Description | Parameter |

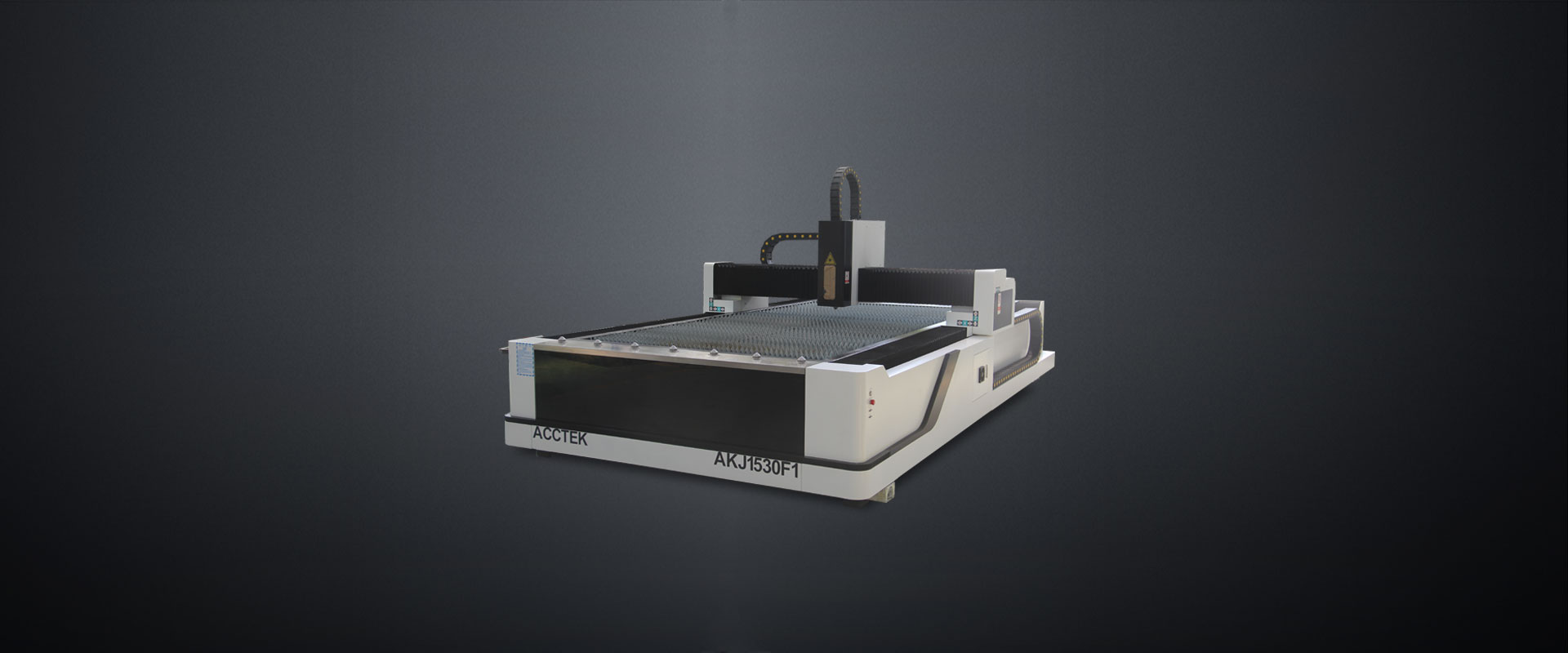

| 1 | Model | AKJ1530F1 |
| 2 | Working area | 1500*3000mm |
| 3 | Laser generator | Raycus |
| 4 | Voltage | 220V,50/60HZ |
| 5 | Laser power | 500w,1000w,1500w |
| 6 | Repeat positioning accuracy | ±0.02mm |
| 7 | Maximum speed | 35m/min |
| 8 | Dimensions | 4600*2450*1700mm |
| 9 | Power consumption of whole machine | <=11kw |
| 10 | Application metal | Stainless steel,carbon steel,iron,aluminum,copper etc |
| 11 | Drivering system | Taiwan Delta servo motors |
Basic Features
Aviation Aluminum Gantry
Light weight, high strength, no deformation. Molded and framed by integral steel mold and die-casting technology, light crossbeam enables equipment a high operation speed, improving processing efficiency and processing quality.
Raycus laser generator
Raycus has an efficient and professional R&D and production team. The single module CW fiber laser series not only can meet diversified demands of customers to the greatest extent, but also provide personal customization service. Now laser output connector is QBH, with multiple control modes.
Au3tech cutting head
A200M sheet metal cutting head was designed for flat cutting within 2000w by German brand A-cutter in 2018. Stable and reliable, high precision, good quality and long service life
HIWIN Guide rails
Rail works with slider, drive the machine move, with good bearing capacity.
Taiwan delta servo motor
Faster speed with signal feedback. Low heat radiation. Run smoothly at ultra-low speed.Reduce the vibration, avoid oscillation. Efficient torque enhancement .
SHIMPO Reducer
Powerful tool in precision positioning with a backlash of less than 0.04'. perfect solution for precision positional control. Compatibility with all types of servomotors with the use of adaptors
APEX Rack&Pinion
Geometrical Tolerance of all Dimensions Defined Straightness, Parallelism and Perpendicularity Helical Angle and Pressure Angle with Tolerance Defined Surface Roughness of Teeth Defined Hardness and Thickness of the Hardened Layer on the Teeth.
Options
More powerful Raycus laser
We supply laser power from 0.5KW to 12KW to meet different customers'cutting demands.
IPG Laser Generator
IPG Laser Generator is available from 1.0KW to 12KW. It has better performance in cutting aluminum,brass and cooper.
Computer
Convenient and efficient operation
applications
AKJ1530F1 fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, environmental protection equipment. Laser cutting machines are widely used in electronics, electrical, mechanical hardware,
