parameters
| 1 | Working area | 1300*2500mm |
| 2 | Control System | Au3tech |
| 3 | Laser head | Au3tech |
| 4 | Fiber Laser power | 500W/1000W/1500W (Raycus) |
| 5 | CO2 Laser power | 150W (Reci W6 ) |
| 6 | Transmission | All axis Taiwan TBI ball screw transmission |
| 7 | Motor | Taiwan Delta 750w servo motor |
| 8 | Max Cutting Speed | 35m/min |
| 9 | Max speed | 50m/min |
| 10 | Guide rail | Taiwan HIWIN linear guide rail 25mm |
| 11 | Min line width | 0.1mm |
| 12 | Power Requirements | 380V, 50/60Hz, 16A |
| 13 | Continuous Working Time | 24Hours |
| 14 | Repeat positioning accuracy | ±0.02mm |
| 15 | Dimensions | 3800*1850*1300mm |
| 16 | Working voltage | 220V single phase 50/60Hz |
Basic Features
Raycus laser generator
Raycus has an efficient and professional R&D and production team. The single module CW fiber laser series not only can meet diversified demands of customers to the greatest extent, but also provide personal customization service. Now laser output connector is QBH, with multiple control modes.
RECI CO2 Laser Tube
Equiped with a W6 laser tube. It can cut non-metal materials up to 20mm. It has long lifetime, stable cutting performance and excellent after sale service.
Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
All axis ballsrew transition
To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.
Au3tech cutting head
A200M sheet metal cutting head was designed for flat cutting within 2000w by German brand A-cutter in 2018.Stable and reliable, high precision, good quality and long service life
HIWIN Guide rails
Rail works with slider, drive the machine move, with good bearing capacity.
Taiwan delta servo motor
Faster speed with signal feedback. Low heat radiation. Run smoothly at ultra-low speed. Reduce the vibration, avoid oscillation. Efficient torque enhancement.
Options
More powerful Raycus laser
We supply laser power from 0.5KW to 12KW to meet different customers'cutting demands.
IPG Laser Generator
IPG Laser Generator is available from 1.0KW to 12KW. It has better performance in cutting aluminum,brass and cooper.
Computer
Convenient and efficient operation
applications

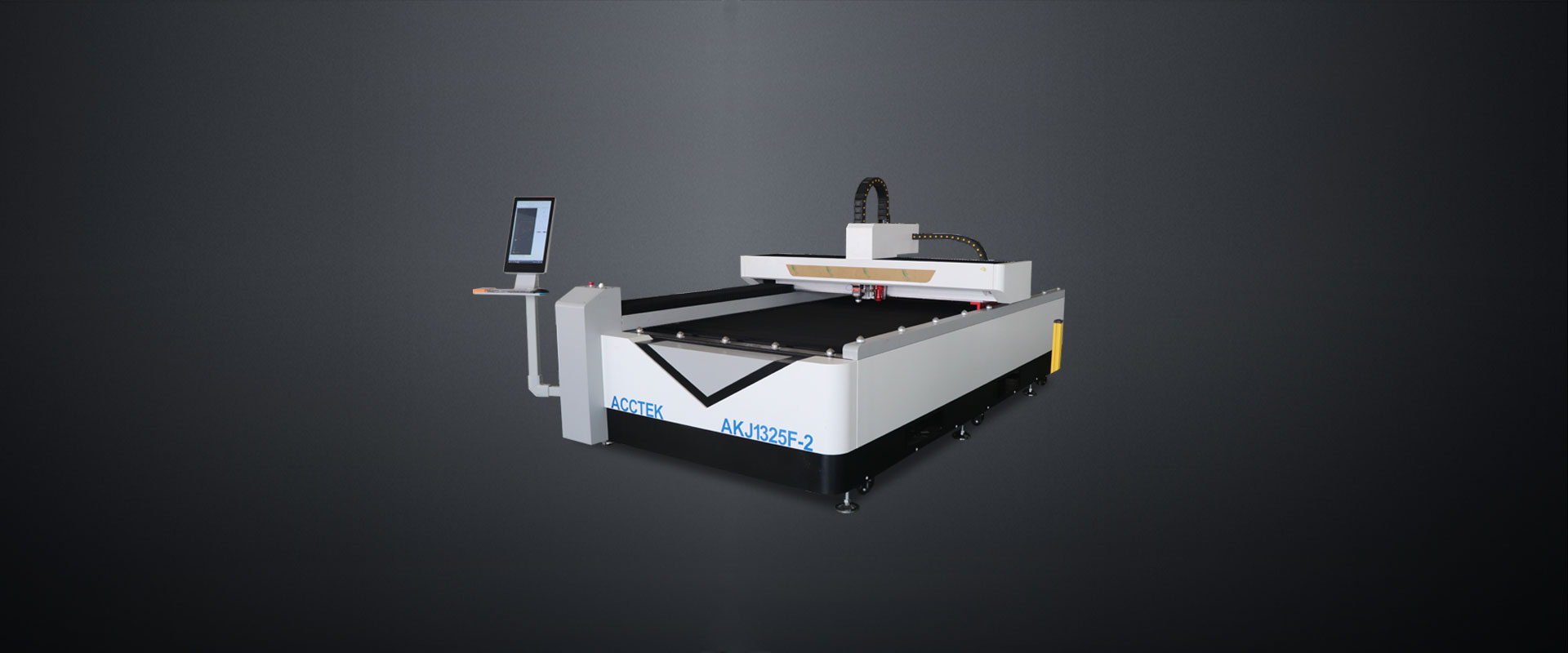

CO2 and fiber combined laser cutting machine AKJ1325F-2 fiber laser cutting machine fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, environmental protection equipment. Laser cutting machines are widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries. Stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, etc.
