parameters
| Description | Parameter | |||||

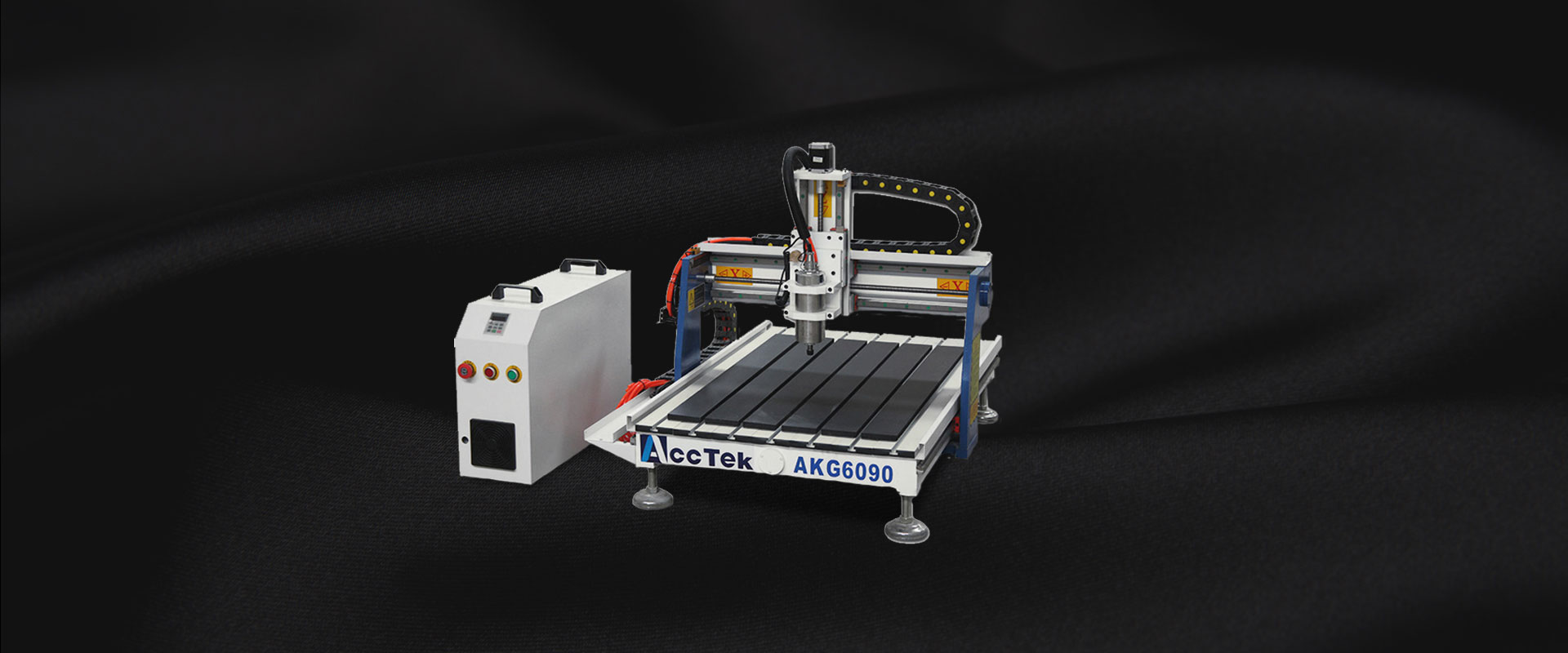

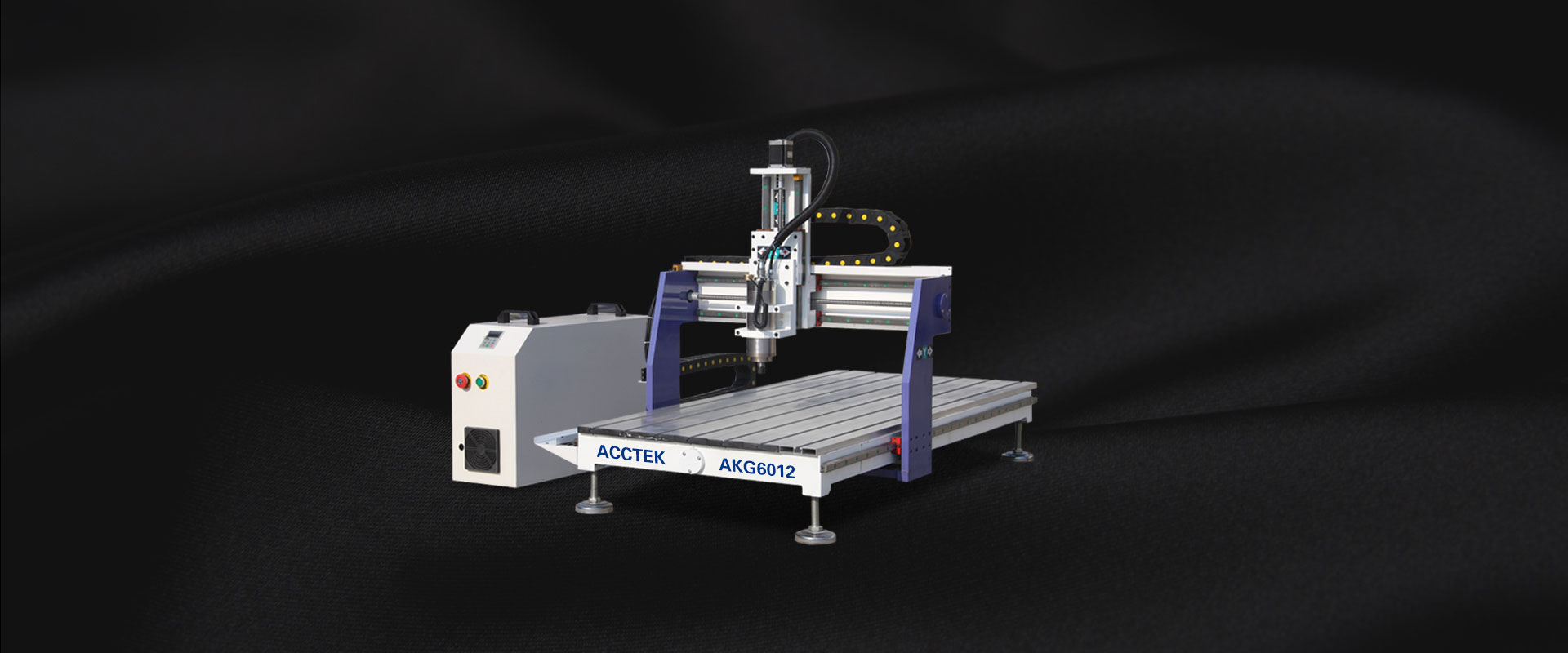

| 1 | Model Name | AKG 6090 | AKG 6012 | |||
| 2 | X Y Z working area | 600x900x200mm | 600x1200x200mm | |||
| 3 | Whole structure | cast iron body | ||||
| 4 | Table surface | T-slot working table | ||||
| 5 | Movement parts | Taiwan TBI Ball screw transmition | ||||
| 6 | Spindle | 1.5KW water cooling spindle | ||||
| 7 | Spindle speed | 24000 RPM | ||||
| 8 | Drive Motor | NEMA23 stepper motor and Leadshine M542driver | ||||
| 9 | Max. Rapid Travel Rate | 15000 mm/min | ||||
| 10 | Max. Working speed | 8,000mm/min | ||||
| 11 | Control System | Mach3 control system with ethernet connection | ||||
| 12 | Software | ARTCAM, UCANCAM ,Type3 and other CAD or CAM software | ||||
| 13 | Machine precision | 0.01mm | ||||
| 14 | Repositioning precision | 0.03mm | ||||
| 15 | Command | G code | ||||
| 16 | Working Voltage | 1/3phase 380v/220V .50/60HZ | ||||
| 17 | Package Size | 1400*1050*1130mm | 1760x1120x1300 mm | |||
| 18 | Net Weight | 240KG | 300KG | |||
| 19 | Z-axis setting | Auto Z origin tool sensor | ||||
| 20 | Color | Can be customized as you like | ||||
Basic Features
1.5KW water cooling spindle
high speed grinding, low noise. Antioxidant don’t rust,long lifetime.0-24000 rpm ,ER11 or ER16 collet .
Mach3 controller
Support Winxp win7 win10 system.Connected with computer during running ,USB or ethernet connection.
Hiwin square guide rail
Rail works with slider ,drive the machine move ,oil lubrication with good bearing capacity.
Stepper motor NEMA23 with Leadshine driver M542.
Cheap and good performance ,function is to drive the axis movement as parameter setting.
Fuling inveter
Famous brand with high performance ,drive spindle working ,Smooth operation and speed change.
Ball screw transmission
Its function is to convert rotary motion to linear motion,drive the machine move
Options
Taiwan delta servo motor
Faster speed with signal feedback .Low heat radiation .Run smoothly at ultra-low speed.Reduce the vibration ,avoid oscillation .Efficient torque enhanc
Mist spray cooling system
Reduce the heat of material and workingtool bits .suitable for metal processing .
Rotary axis
Realize local rotary machining, reduce finishing allowance and complete tool path calculation at one time
dust collector
All dust residue is controlled with a small area by employing the brush of the dust hood on the spindle to get the residue vacuumed away into the dust
Air cooling spindle
High precision chuck balanced nut, with powerful fan high-efficiency refrigeration.High precision steel ball retainer; grease lubrication high temperat
DSP controller
featuring delicate appearance,powerful functionality and flexible operation.
applications
Very popular in: Furniture industry:wood,folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.
