parameters
| No | Deacription | Parameter | ||
| 1 | Model | AKS7090 | AKS9015 | AKS1325 |
| 2 | Working area | 700x900x300mm | 900x1500x300mm | 1300x2500x300mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.02/300mm | ||
| 4 | X,Y,Z repositioning Positioning Accuracy | ±0.03mm | ||
| 5 | Frame | Welded Steel Structure | ||
| 6 | X-Z Structure | X,Y axis rack and pinion,Z axis ball screw | ||
| 7 | Max. Power consumption(Without spidle) | 5.5KW | ||
| 8 | Max. Rapid Travel speed | 16000mm/min | ||
| 9 | Max. Working Speed | 8000mm/min | ||
| 10 | Spindle Power Motor | 5.5KW water cooling | ||
| 11 | Spindle Speed | 0-24000RPM | ||
| 12 | Drive System | Stepper system(Option:servo system) | ||
| 13 | Working Voltage | AC220V/50/60Hz（Option:380V） | ||
| 14 | Command Language | G code | ||
| 15 | Operating System | Mach3 System(Option:DSP Sodtware) | ||
| 16 | X-Y Resolution | <0.02mm | ||
| 17 | Software compatability | Artcam software,Type3 software(Option:Wentail Siftware) | ||
| 18 | Running Environment | Temperature:0-45 degree Relative humidity:30% 75% | ||
Basic Features
5.5KW water cooling spindle
Smooth body, not easy to rust;powerful and longer lifetime.strong enough to work with stone and soft metal .
Mach3 controller
Support Winxp win7 win10. With ethernet connection ,high performance .
HIWIN Guide rails
Rail works with slider ,drive the machine move ,with good bearing capacity.
Helical gear and rack transmission
Good meshing performance, smooth transmission and low noise. The large coincidence reduces the load of each pair of gears and improves the bearing capacity of the gears.
450B stepper motor
Without A/D conversion, the digital pulse signal can be directly convertedinto angular displacement. Cheap and good performance ,function is to drive the axis movement as parameter setting.
Water cooling nozzle
Cooling direction and water flow can be adjusted, better cooling effect.
Water tank
Collect the water into tank, protect the machine and work place.
Heavy duty structure
All seamless welded steel structure, heavy duty, no deform. All three axis with dust cover, protect the guide rails and rack very well.
Options

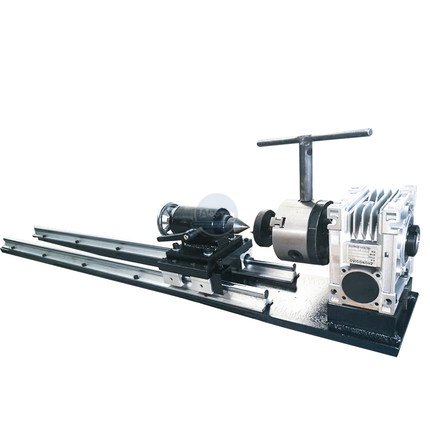

Rotary axis
Realize local rotary machining, reduce finishing allowance and complete tool path calculation at one time
Leadshine servo motor
Fast speed, more convenient, save processing time, high control accuracy
DSP controller
featuring delicate appearance,powerful functionality and flexible operation.
applications
Application Industry: Stone processing engraving, milling, Cutting, mold manufacturing cutting, wood processing cutting, art and craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment
